Outcrop Patterns
Rowan Cockett
Geologic Mapping

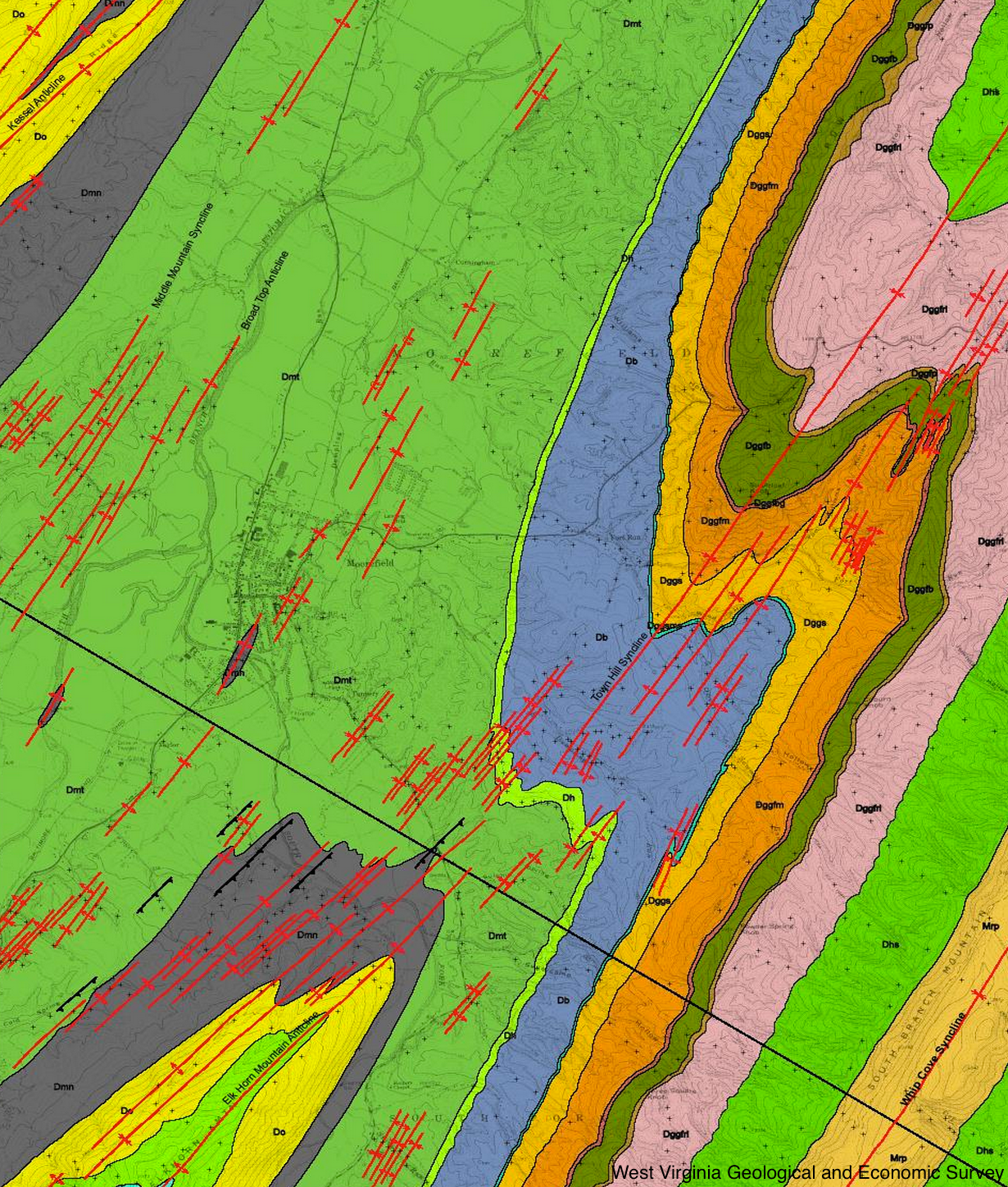

Geologic Map

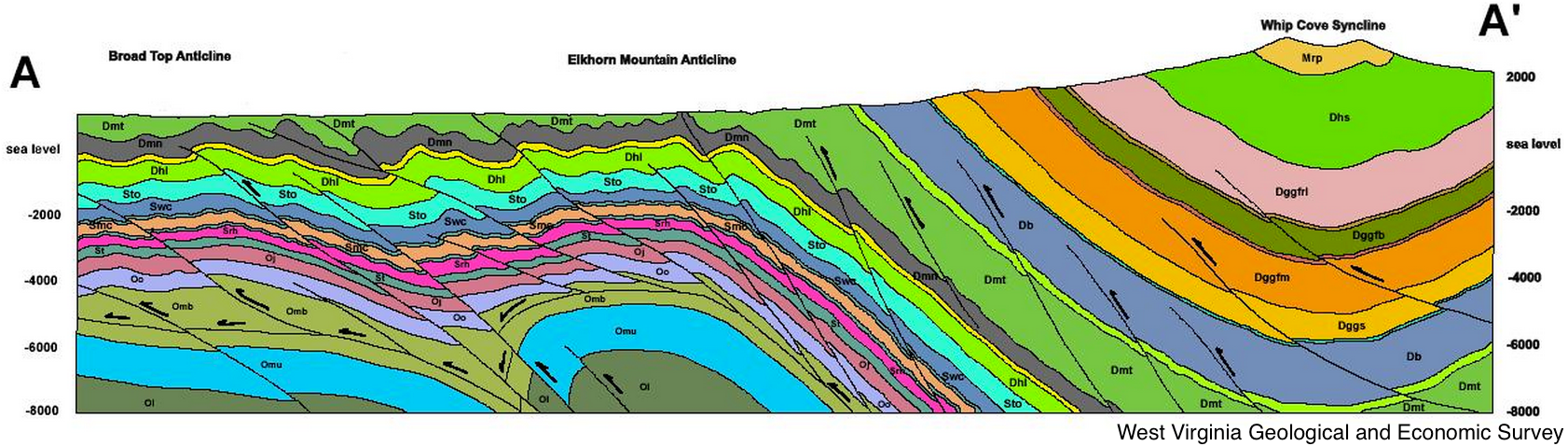

Geologic Interpretation
Learning Objectives
- Learners will be able to identify the dip direction of planar layers in valleys.

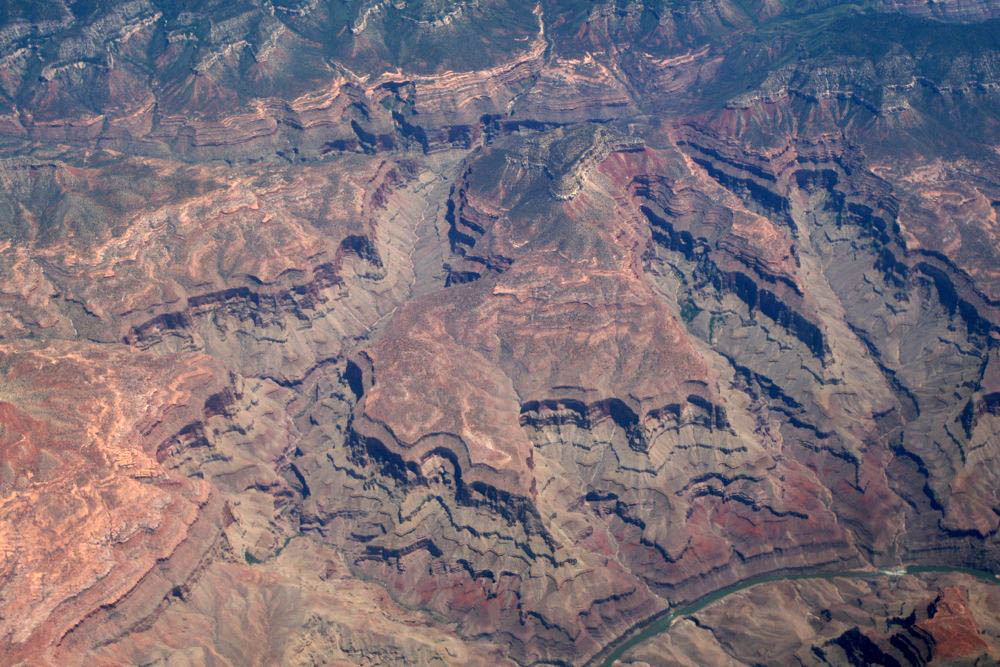

Identify Dip Direction - Flat
Identify Dip Direction - Valley
Do it Yourself!
- Go to http://visiblegeology.com
- View Models, search for 'EOSC516'
- Explore, Geologic History
Relate dip direction to the 'V' in the valley.
Visualize

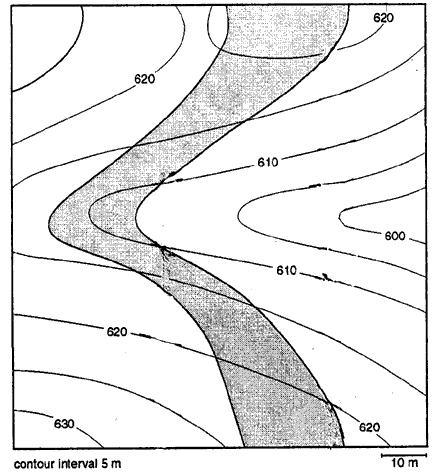

Outcrop Pattern
Outcrop Pattern
Complicated Geology?
Simple Planar Layer

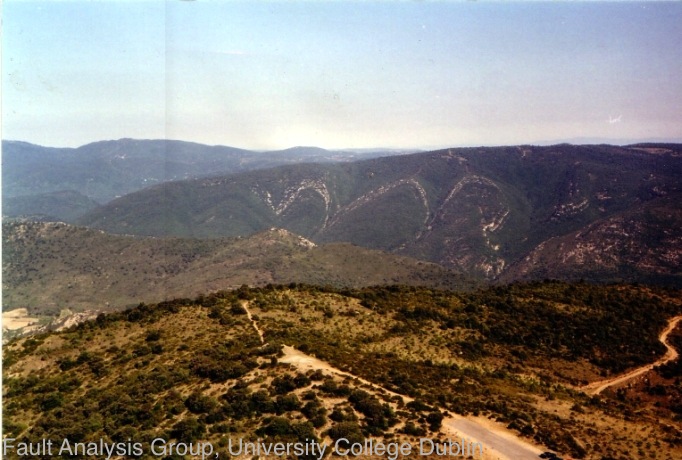

Rule of V's
- Beds generally 'V' down a valley in the direction that they dip.
- Does not work when valley is steeper than the dipping layers.
